I have been doing some PC cleaning recently and stumbled upon these old photos. These are for a ergonomic kettle poorer. The Kettle tipper addressed the problem of not being able to get a steady flow of hot water as the kettle empted. I used a cam motion, the product didn’t really work, and was made pretty badly.

This project taught me a lot, and was my first real introduction to CAD. Using Pro-Desktop for this project.


A Active Prototype

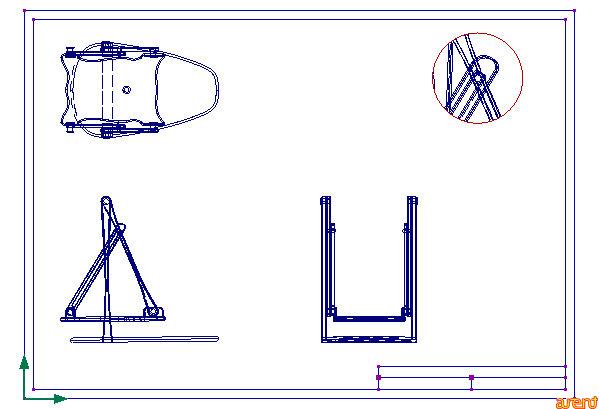

3rd Angle Projection

CAD

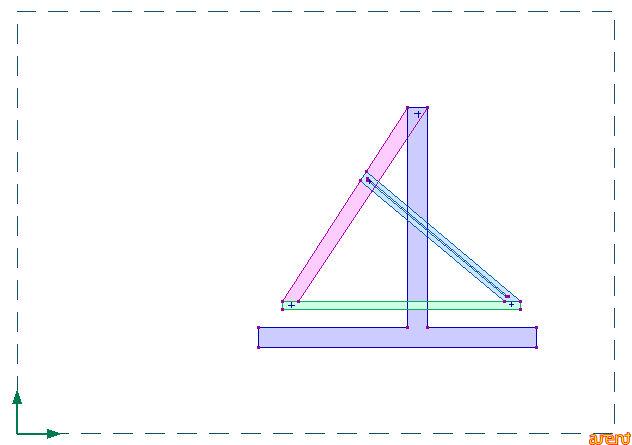

Rought CAD

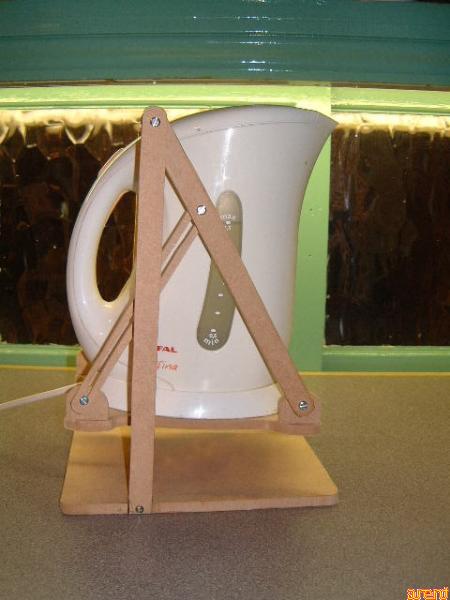

First Prototype, (yes. Only one!)

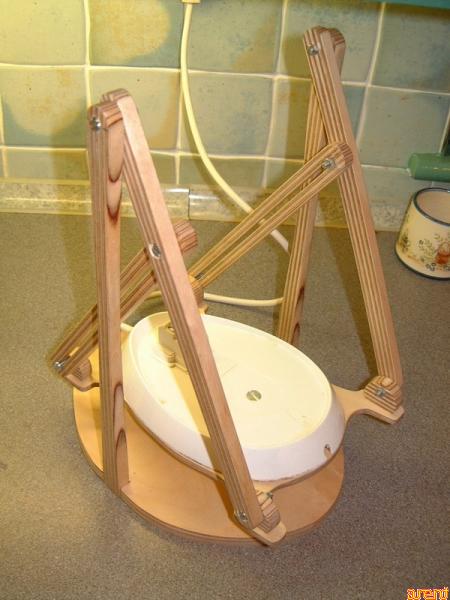

final product

The Final Product in all its PLY good-ness.
